Description

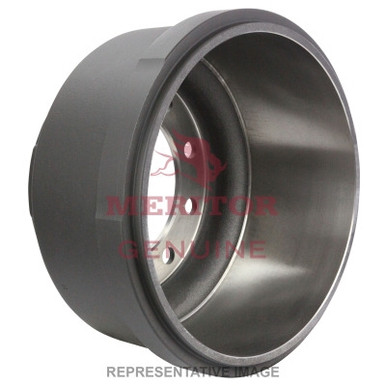

Meritor part number 85-123427-002 or 85123427002 is a cast balanced brake drum designed for inboard mounting on spoke-wheel axle ends rated to 20,000 lb. axle capacity. The drum measures 16.50 in. in diameter with a 6.00 in. brake width and a 6.69 in. brake surface width. Overall drum depth is 7.49 in. The bolt pattern uses 6 holes on a 12.75 in. bolt circle diameter, each hole measuring 0.78 in. in diameter. Pilot diameter is 11.25 in. Available from Pro Gear and Transmission. Call us to confirm proper fit for your application before ordering.
Features
Brake diameter: 16.50 in.; brake width: 6.00 in.
Brake surface width: 6.69 in.; overall depth: 7.49 in.
Cast balanced drum construction with inboard mounting
Spoke wheel type; rated for 20,000 lb. axle capacity
6-bolt pattern on 12.75 in. bolt circle diameter; bolt hole diameter 0.78 in.
Pilot diameter: 11.25 in.
Tech Specs
- Brake Diameter: 16.50 in.
- Brake Width: 6.00 in.
- Brake Surface Width: 6.69 in.
- Overall Depth: 7.49 in.
- Drum Type: Cast Balanced
- Drum Mounting: Inboard
- Wheel Type: Spoke
- Axle Capacity: 20,000 lb.
- Bolt Hole Quantity: 6
- Bolt Hole Diameter: 0.78 in.
- Bolt Circle Diameter: 12.75 in.
- Pilot Diameter: 11.25 in.
- VMRS Code: 013-017-006
