Description

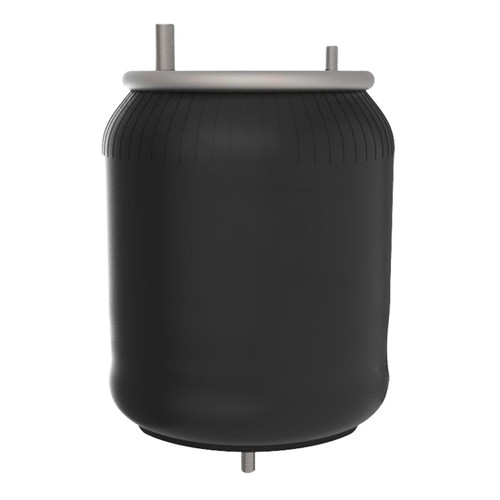

Air Spring Rolling Lobe For Hendrickson Rear Primaax & EX / Firemaax & EX
– Air Spring
– Rolling Lobe Type
– 6320 Load At 80 PSI
– 7900 Load At 100 PSI
– Plastic Bottom Plate
– Dimensions:
– 12.50 Inch Design Height
– 7.50 Inch Minimum Height
– 23.20 Inch Maximum Height
– 12.90 Inch Maximum Diameter
– Top Plate:
– (2) Studs (1.60 Inch And 0.85 Inch)
– 9.00 Inch Diameter
– 5.87 Inch Center To Center Diameter
– Bottom Plate:
– (2) Studs (1.50 Inch)
– 8.97 Inch Diameter
– 6.00 Inch Center To Center Diameter
– Sold Individually
– Cross Ref Numbers 75267. 9 10BS-17 P 1193. 9866. W013589866. W01-358-9866. W014559866. W01-455-9866. 67391002. 67391-002. 673912. 67391-2. 673912C
– This Item Ships Direct From The Manufacturer And Will Arrive In A Separate Package And Possibly A Different Time Than The Balance Of Your Order
Fitment
** Fits Truck Make & Models W/ HENDRICKSON Rear Primaax & EX And Firemaax & EX Suspension Systems
