Description

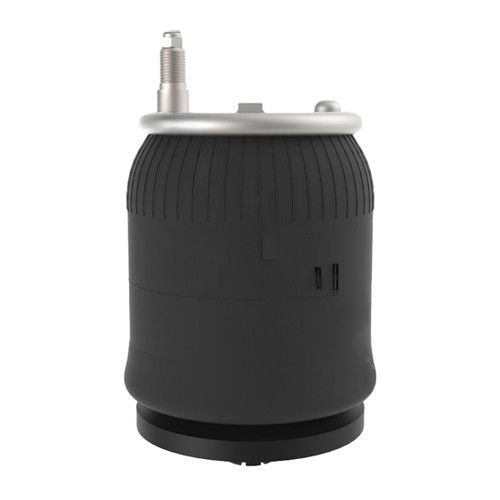

Air Spring Rolling Lobe For BlueBird 10K, Mack-Volvo 12-12.5K & Spartan 10.5-12K Suspension
– Air Spring
– Rolling Lobe Type
– 2900 Load At 80 PSI
– 3600 Load At 100 PSI
– 81 CPM Natural Frequency 81 CPM
– 1/4 Inch PTC Air In Fitting
– Uses A PNF107 Nut And A FSW410 Washer
– Welded Guides For Air Spring Top Bracket Positioning
– Metal Top Bead Plate
– Plastic Base
– With Bumper
– Dimensions:
– 8.00 Inch Design Height
– 5.10 Inch Minimum Height
– 14.70 Inch Maximum Height
– 9.10 Inch Maximum Diameter
– Top Plate:
– (1) Stud Hole
– 6.31 Inch Diameter
– Bottom Plate:
– (1) Stud Hole
– 6.50 Inch Diameter
– Sold Individually
– Aftermarket Replacement Part (Not OEM)
– Cross Ref Numbers 9912, 69915, 64075002
– This Item Ships Direct From The Manufacturer And Will Arrive In A Separate Package And Possibly A Different Time Than The Balance Of Your Order
Fitment
* Fits Mack CH Model 1987 thru 2006
* Fits Mack CHN613 2004 thru 2007
* Fits Mack CHU613 2008 thru 2020
* Fits Mack CV713 Granite 2003 thru 2012
* Fits Mack GU713 2008 thru 2024
* Fits Mack GU813 2008 thru Current
* Fits Mack CX613 2000 thru 2004
* Fits Mack CXN613 Vision 2004 thru 2007
* Fits Mack CXU613 Pinnacle 2008 thru 2018
* Fits Mack R Model 1973 thru 1989
* Fits Mack RD Model 1973 thru 2003
* Fits Mack RW Superliner 1984 thru 1993
* Fits Volvo VNL Gen I 1998 thru 2003
* Fits Volvo VNL Gen II 2004 thru 2018
* Fits Volvo VNL Gen III 2019 thru 2024
* Fits Volvo VNR 2018 thru Current
* Fits Volvo VT880 2006 thru 2010
* Fits Volvo WIA 1987 thru 1997
* Fits Blue Bird Vision 2003 thru Current
* Fits Blue Bird TC2000 1988 thru 2003
** Fits CH SFA & SBA Models Only **
** Fits Mack CHN/CHU SFA Only **
