Description

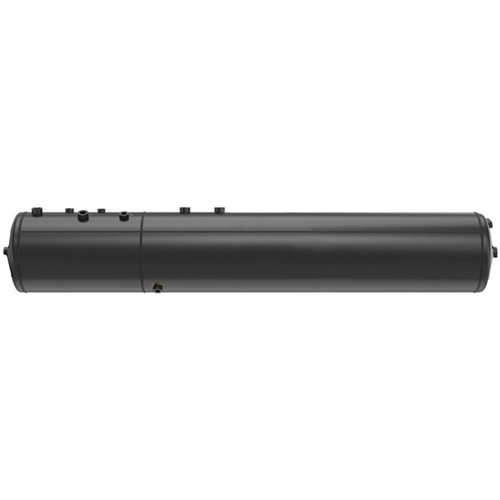

Freightliner Black Carbon Steel Air Tank With Seven 1/2, Three 3/8, One 1/4, One 1/8 NPT Ports
This heavy duty Freightliner Air Tank Assembly with dual air tank chambers will help maintain the effectiveness of your air-actuated braking and suspension systems by replacing the old corroded, leaking air tank. This tank also supplies air to air-powered shocks, air-powered seats, and air-powered doors. It is designed to fit like the original factory equipment part.
– Air Tank
– Dual Chamber Split Reservoir
– With Internal Check Valve
– Made Of Steel
– Black Phosphate Coating
– 3356 Cubic Inch Capacity
– 150 PSI Working Pressure
– Meets SAE J10 And FMVSS 121 Standards
– 12 Total Port Configuration:
– Side Ports: (4) 1/2 Inch NPT, (2) 3/8 Inch NPT, (1) 1/4 Inch NPT And (1) 1/8 Inch NPT
– One End: (1) 1/2 Inch NPT And (1) 3/8 Inch NPT Drain Port
– Other End: (2) 1/2 Inch NPT
– Dimensions:
– 54.000 Inch Length
– 9.500 Inch Diameter
– Sold Individually
– Aftermarket Replacement Part (Not OEM)
– Replaces OE Numbers 1215476000, 12-15476-000
– This Item Ships Direct From The Manufacturer And Will Arrive In A Separate Package And Possibly A Different Time Than The Balance Of Your Order
Fitment
* Fits Freightliner Cascadia 2008 thru 2017
* Fits Freightliner Columbia 120 2001 thru 2010
