Description

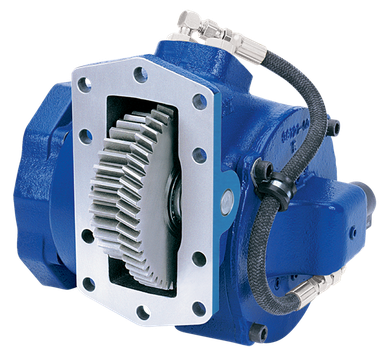

The Muncie CS10-A1006-H1EB is a 10-bolt, heavy-duty clutch shift power take-off from the CS10 Series. The unit supports S.A.E. “B”, “BB”, and “C” as well as DIN 5462 direct mount pump configurations, and rotatable direct mount flanges let you position the pump for maximum clearance. Three remote mount output shaft options are available in both keyed and flange types. Muncie’s patented drag brake prevents output shaft rotation when the PTO is in the OFF position. Standard pressure lubrication is built in at no additional cost. Two assembly arrangements allow mounting shaft high or low on either side of the transmission. Also referenced as CS10A1006H1EB. Call us to confirm proper fit for your application.
Features
10-bolt heavy-duty clutch shift design
S.A.E. “B”, “BB”, and “C”; DIN 5462 direct mount pump compatibility
Rotatable direct mount flanges for maximum pump clearance
Patented Muncie drag brake prevents output shaft rotation in OFF mode
Three remote mount output shaft options: keyed and flange types
Two assembly arrangements for shaft-high or shaft-low mounting on either side of the transmission
