Description

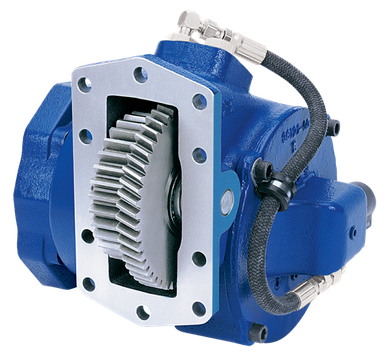

The Muncie CS10-A1006-H3IX or CS10A1006H3IX is a 10-bolt heavy-duty clutch shift power take-off from the CS10 Series. Built for demanding applications, it supports SAE “B”, “BB”, and “C” as well as DIN 5462 direct mount pump configurations. Rotatable direct mount flanges let you position the pump for maximum clearance in tight installations. Three remote mount output shaft options — both keyed and flange types — cover a wide range of remote pump drive setups. Two assembly arrangements allow the unit to be mounted shaft high or shaft low on either side of the transmission. Standard pressure lubrication is included. Muncie’s patented drag brake prevents output shaft rotation when the PTO is in the OFF position. Call us to confirm proper fit for your application.
Features
CS10 Series clutch shift PTO, 10-bolt heavy-duty design
SAE “B”, “BB”, and “C”; DIN 5462 direct mount pump options
Rotatable direct mount flanges for maximum pump clearance
Three remote mount output shafts in keyed and flange types
Two assembly arrangements: shaft high or shaft low on either side of the transmission
Patented Muncie drag brake prevents output shaft rotation in OFF mode
