Description

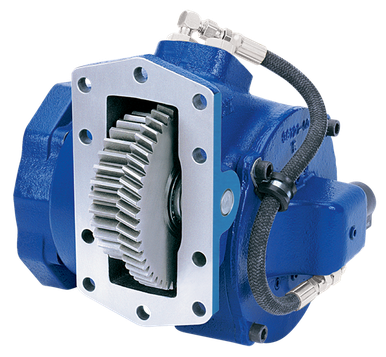

The Muncie CS10 Series power take-off, part number CS10-A1006-H3ZX or CS10A1006H3ZX, is a 10-bolt heavy-duty clutch shift PTO built for demanding hydraulic applications. It supports SAE “B”, “BB”, and “C” as well as DIN 5462 direct mount pump configurations, with rotatable flanges for maximum pump clearance. Three remote mount output shaft options, available in keyed and flange types, cover a wide range of remote pump drive setups. Muncie’s patented drag brake prevents output shaft rotation when the unit is in the “OFF” position. Two assembly arrangements let installers mount the PTO shaft high or low on either side of the transmission. Standard pressure lubrication is included. Call us to confirm proper fit for your application.
Features
10-bolt heavy-duty clutch shift design
SAE “B”, “BB”, and “C”; DIN 5462 direct mount pump compatibility
Rotatable direct mount flanges for pump positioning and clearance
Patented Muncie drag brake prevents output shaft rotation in “OFF” mode
Three remote mount output shaft options: keyed and flange types
Two assembly arrangements: shaft high or low on either side of the transmission
