Description

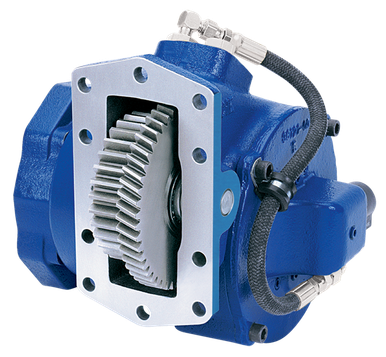

The Muncie CS10-A1010-H3EX or CS10A1010H3EX is a 10-bolt, heavy-duty clutch shift Power Take-Off from Muncie Power’s CS10 Series, built for demanding hydraulic and auxiliary drive applications. The CS10 Series supports SAE “B”, “BB”, and “C” as well as DIN 5462 direct mount pump configurations, with rotatable flanges that let you position the pump for clearance in tight installations. Three remote mount output shaft options cover both keyed and flange types. Muncie’s patented drag brake prevents output shaft rotation when the PTO is disengaged. Two assembly arrangements allow mounting shaft-high or shaft-low on either side of the transmission. Standard pressure lubrication is included at no extra cost. Call us to confirm proper fit for your transmission and application.
Features
10-bolt heavy-duty clutch shift design
SAE “B”, “BB”, and “C”; DIN 5462 direct mount pump compatibility
Rotatable direct mount flanges for maximum pump clearance
Patented Muncie drag brake prevents output shaft rotation in OFF mode
Three remote mount output shaft options: keyed and flange types
Two assembly arrangements: shaft-high or shaft-low on either side of the transmission
