Description

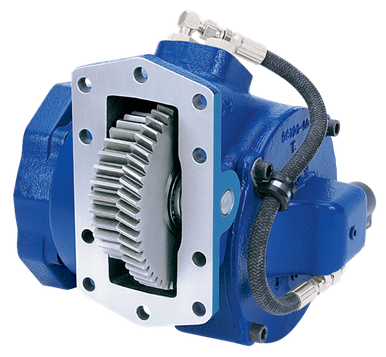

The Muncie CS11-A1008-H3PX or CS11A1008H3PX is a CS11 Series 10-bolt heavy-duty clutch shift power take-off designed for compact installation with a remotely mounted solenoid. Three remote-mount output shafts are available in both keyed and flange types for remote pump drives. Direct-mount pump flanges cover SAE “B”, “BB”, and “C” as well as DIN 5462 patterns, and the rotatable flanges let you position the pump for maximum clearance. A patented Muncie drag brake prevents output shaft rotation when the PTO is in the off position. Two assembly arrangements allow mounting shaft-high or shaft-low on either side of the transmission. Standard pressure lubrication is included. Call us to confirm proper fit for your application.
Features
CS11 Series 10-bolt heavy-duty clutch shift power take-off
Remotely mounted solenoid for compact installation
Three remote-mount output shaft styles: keyed and flange types
Direct-mount pump flanges: SAE B, BB, C and DIN 5462 patterns
Rotatable direct-mount flanges for pump positioning and clearance
Patented Muncie drag brake prevents output shaft rotation in OFF mode
Two assembly arrangements – mount shaft-high or shaft-low on either side of the transmission
Standard pressure lubrication included
