Description

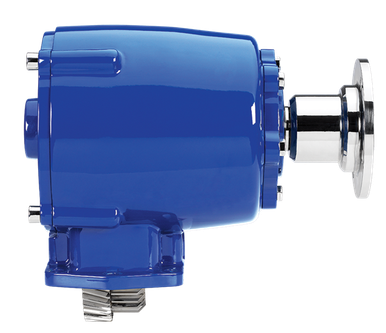

The Muncie CS41 Series power take-off, part number CS41-A1007-H3CD or CS41A1007H3CD, is a clutch-shift PTO engineered for Allison 3000 and 4000 series and Caterpillar CX transmissions. Precision ground gears keep noise down while handling high torque loads. At the “07” speed ratio, intermittent torque is rated at 600 lb-ft (813 Nm), with a continuous rating of 420 lb-ft (569 Nm). The unit supports a 1410 series remote mount output shaft for remote pump drives, and offers S.A.E. “C” and DIN 5462 direct mount flanges to fit most high-power-input pumps. Two assembly arrangements allow shaft-high or shaft-low mounting on either side of the transmission. Standard pressure lubrication is included. Call us to confirm proper fit for your application.
Features
Clutch-shift design for Allison 3000/4000 and Caterpillar CX transmissions
Precision ground gears for high torque capacity and quiet operation
Intermittent torque rating up to 600 lb-ft (813 Nm) at “07” speed ratio
1410 series remote mount output shaft for remote pump drive applications
S.A.E. “C” and DIN 5462 direct mount flange options with rotatable positioning
Two assembly arrangements allow shaft-high or shaft-low mounting on either side of the transmission
Maximum output speed of 4000 RPM on fire pump applications
