Description

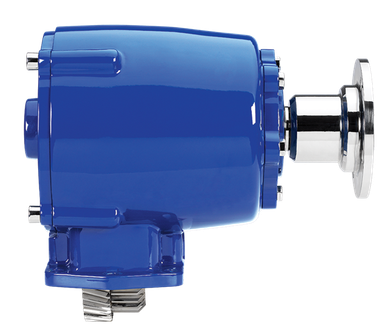

The Muncie CS41-A1012-H1EX or CS41A1012H1EX is a 10-bolt heavy-duty clutch shift power take-off from the CS41 Series, designed to deliver maximum output from Allison 3000 and 4000 series and Caterpillar CX transmissions. The unit features precision ground gears for quiet, high-torque operation and extra-large bearings for demanding duty cycles. A 1410 series remote mount output shaft supports remote pump drive installations, while S.A.E. “C” and DIN 5462 direct mount flanges fit most high-power-input pumps. Rotatable direct mount flanges allow flexible pump positioning for clearance. Two assembly arrangements let the PTO mount shaft-high or shaft-low on either side of the transmission. Standard pressure lubrication is included. Maximum output speed on fire pump applications is 4,000 RPM. Call us to confirm proper fit for your application.
Features
10-bolt heavy-duty clutch shift design for Allison 3000/4000 and Caterpillar CX transmissions
Precision ground gears for high torque capacity and quiet operation
Extra-large bearings and components for extended durability under high loads
1410 series remote mount output shaft for remote pump drive installations
S.A.E. “C” and DIN 5462 direct mount flanges fit most pumps requiring high power input
Two assembly arrangements allow shaft-high or shaft-low mounting on either side of the transmission
Rotatable direct mount flanges for maximum pump clearance positioning
Standard pressure lubrication included
Maximum output speed of 4,000 RPM on fire pump applications
Tech Specs
- Series: CS41 (Clutch Shift)
- Configuration: 10-Bolt Heavy-Duty
- Mount Type: Allison 3000/4000 and Caterpillar CX transmission
- Output Options: 1410 series remote mount shaft; S.A.E. “C” 2/4-bolt flange; DIN 5462 direct mount
- Direct Mount Flanges: Rotatable S.A.E. “C” and DIN 5462
- Assembly Arrangements: Two (shaft-high or shaft-low, either side of transmission)
- Lubrication: Standard pressure lubrication
- Max Output Speed (Fire Pump): 4,000 RPM
