Description

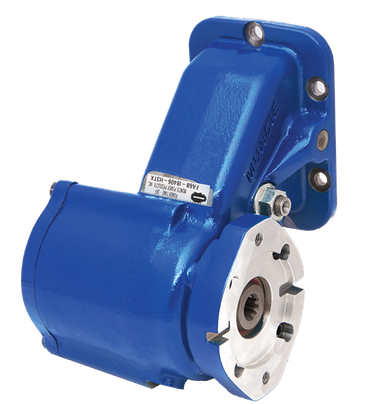

The Muncie FA6B-A6706-H3BX or FA6BA6706H3BX is a 6-bolt clutch-shift power take-off built for Allison and Aisin transmissions. The FA6B Series angular housing moves the output below chassis obstructions, making it practical for both drive shaft and direct-mount pump applications. Engagement is handled by a solenoid-activated clutch shift, eliminating gear clash on engagement. The pre-configured wiring harness allows plug-in installation without custom wiring. This unit also supports remote and direct mount pump configurations. Output options for the FA6B Series include a 1-1/4″ round shaft with 5/16″ key, SAE “A” 2-bolt flange with 5/8″-9T splined shaft, SAE “A” 2-bolt flange with 7/8″-13T splined shaft, and SAE “A” 2-bolt flange with 3/4″-11T splined shaft. Call us to confirm the correct output configuration for your pump and chassis.
Features
Solenoid-activated clutch shift for positive, gear clash-free engagement
Angular housing design routes output below chassis obstructions on Allison and Aisin 6-bolt transmissions
Supports both remote and direct mount pump configurations
Pre-configured wiring harness for plug-in installation
Multiple output shaft options available, including round shaft and SAE “A” 2-bolt splined flange variants
Maximum output speed: 2,500 RPM (FA6B Series)
Tech Specs
- Transmission Compatibility: Allison and Aisin 6-bolt transmissions
- Shift Type: Solenoid-activated clutch shift
- Output Options: “B” – 1-1/4″ round shaft with 5/16″ key; “R” – SAE “A” 2-bolt flange, 5/8″-9T splined shaft; “Q” – SAE “A” 2-bolt flange, 7/8″-13T splined shaft; “T” – SAE “A” 2-bolt flange, 3/4″-11T splined shaft
- Maximum Speed: 2,500 RPM
- Wiring: Pre-configured plug-in harness
- Mount Style: Remote or direct mount
