Description

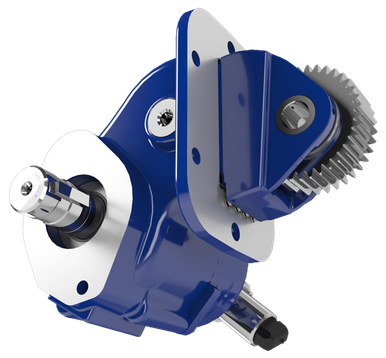

The Muncie FR6Q-F1209-63BB or FR6QF120963BB is a 6-bolt clutch-shift power takeoff from the FR6Q Series, designed specifically for Ford F-350, F-450, and F-550 Super Duty trucks equipped with the Ford 6R140 transmission, in both 4×2 and 4×4 configurations. It may also be used on F-650 and F-750 applications. Engagement is solenoid-activated and the unit ships with a preconfigured wiring harness and a one-piece rocker for straightforward installation. A built-in noise-abatement mechanism eliminates virtually all gear rattle for noticeably quieter PTO operation. Stationary-mode ratings reach 39 HP and 200 lb-ft intermittent torque at 1,000 RPM. Call us to confirm proper fit for your truck and upfit requirements.
Features
Fits Ford F-350, F-450, F-550 (4×2 and 4×4) with Ford 6R140 transmission; may also fit F-650 and F-750
FR6Q Series 6-bolt clutch-shift design
Solenoid-activated engagement
Preconfigured wiring harness included for simplified installation
One-piece installation with rocker
Noise-abatement mechanism virtually eliminates gear rattle noise
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
| Speed Ratio | Intermittent HP @ 1,000 RPM | Intermittent Torque (lb-ft) | Continuous Torque (lb-ft) | Intermittent (kW) @ 1,000 RPM | Intermittent Torque (Nm) | Continuous Torque (Nm) |
|
(09) Stationary |
39 | 200 | 140 | (29) | (271) | (190) |
|
(09) Mobile |
22 | *120 | 120 | (16) | (162) | (162) |
| *FR6Q limit in mobile applications – continuous intermittent | ||||||
