Description

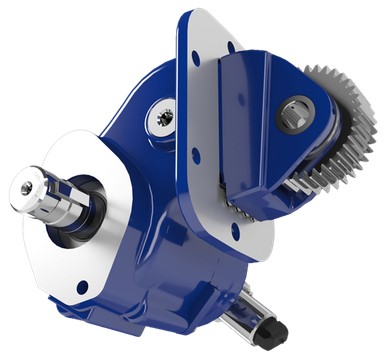

The Muncie FR6Q-F1209-D3QX or FR6QF1209D3QX is a 6-bolt clutch-shift power take-off from the FR6Q Series, designed for the Ford 6R140 automatic transmission in 4×2 and 4×4 Ford Super Duty F-350 through F-550 trucks, with potential application on F-650 and F-750 as well. The unit installs as a one-piece assembly with a rocker and arrives with a preconfigured wiring harness, reducing installation time. Solenoid activation pairs with a built-in noise-abatement mechanism that eliminates virtually all gear rattle under operation. Stationary-use intermittent torque is rated at 200 lb-ft (271 Nm); continuous torque is 140 lb-ft (190 Nm) at 39 hp intermittent at 1,000 RPM. Mobile-use ratings are 120 lb-ft (162 Nm) intermittent and continuous at 22 hp. A genuine Muncie part from Pro Gear and Transmission. Call us to confirm proper fit for your specific chassis and upfit configuration.
Features
Fits 4×2 and 4×4 Ford Super Duty F-350 through F-550 with Ford 6R140 automatic transmission; potential use on F-650 and F-750
Solenoid-activated 6-bolt clutch-shift engagement
Noise-abatement mechanism eliminates virtually all gear rattle noise
Preconfigured wiring harness included for simplified electrical hookup
One-piece installation with rocker
Stationary intermittent torque: 200 lb-ft (271 Nm); continuous: 140 lb-ft (190 Nm) at 39 hp at 1,000 RPM
Tech Specs
- Transmission Fit: Ford 6R140 automatic
- Vehicle Application: Ford Super Duty F-350, F-450, F-550 (4×2 and 4×4); may also fit F-650 and F-750
- Engagement: Solenoid activated
- Shift Type: 6-bolt clutch shift
- Speed Ratio Code: 09 (Stationary and Mobile)
- Stationary Intermittent HP @ 1,000 RPM: 39 hp (29 kW)
- Stationary Intermittent Torque: 200 lb-ft (271 Nm)
- Stationary Continuous Torque: 140 lb-ft (190 Nm)
- Mobile Intermittent HP @ 1,000 RPM: 22 hp (16 kW)
- Mobile Intermittent Torque: 120 lb-ft (162 Nm)*
- Mobile Continuous Torque: 120 lb-ft (162 Nm)
- *FR6Q limit in mobile applications: continuous equals intermittent
- Alternate Part Number: MUFR6QF1209D3QX
