Description
Overview
Summary

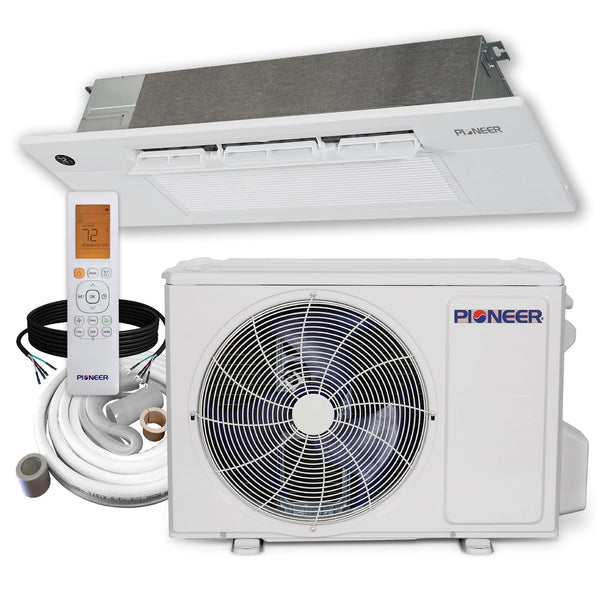

- Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
- Cooling capacity: 12,000 BTU/H with 22 SEER2 / 12.6 EER2 efficiency
- Heating capacity: 12,500 BTU/H with 9.8 HSPF2 / 3.20 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
- One-Way Ceiling Cassette Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- Energy-Star Certified
[[SERIES]]
What’s Included
- Indoor Unit
- Outdoor Unit
- Decorative Panel
- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 12,000 BTU/h
- Cooling Capacity Range: 4,000~13,200 BTU/h
- Cooling SEER2: 22.0 BTU/W.h
- Cooling EER2: 12.6 BTU/W.h
- Heating Rated Capacity: 12,500 BTU/h
- Heating Capacity Range: 3,700~12,800 BTU/h
- Heating HSPF2: 9.8 BTU/W.h
- Heating C.O.P.2: 3.20 W/W
- Refrigerant Type: R410a
- Suitable Area: 200~450 Sq.F
Indoor Unit Data
- Model: CK012GMFILCFHD
- Air Flow (Turbo/Hi/Med/Lo): 600 / 530 / 480 / 420 CFM
- Sound Level (Hi/Med/Lo): 40.5 / 38.5 / 34.5 dB(A)
- Net Dimensions (WDH): 13-1/4 x 50-1/4 x 9 Inches
- Carton Dimensions (WDH): 22-1/2 x 57-5/8 x 22-5/8 Inches
- Net / Carton Weight: 45.2 / 82.9 Lbs
Panel Data
- Panel Net Dimensions (WDH): 18-3/4 x 53-1/2 x 1 Inches
- Panel Carton Dimensions (WDH): 21 x 56-1/2 x 7 Inches
- Panel Net / Gross Weight: 24 / 29 Lbs
Outdoor Unit Data
- Model: YN012GMFI22RPE
- Sound Level: 54.5 dB(A)
- Net Dimensions (WDH): 30.3 x 11.8 x 21.8 Inches
- Carton Dimensions (WDH): 35.3 x 13.6 x 14.6 Inches
- Net / Gross Weight: 64 / 69 Lbs
- Breaker Needed: 15A (double-pole)
Manuals & Downloads
- Series Technical Brochure
- Series User Manual
- Series Installation Manual
- Series Service Manual
- Series Disassembly Guide
- CYK012GMFILCAD Submittal Sheet
- AHRI Certificate
- Energy Guide
