Description

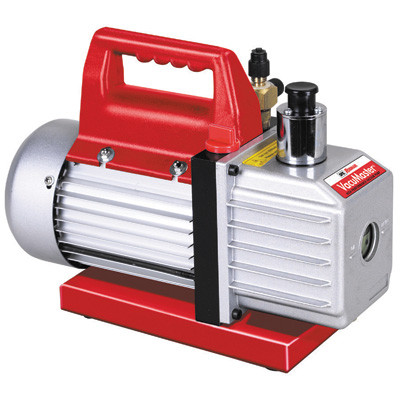

Robinair VacuMaster 2-Stage Vacuum Pump (15150) brings advanced technology and high-efficiency to refrigeration and air conditioning maintenance. This vacuum pump integrates a 2-stage rotary vane design, ensuring powerful, quiet operation and quicker moisture removal.
The Robinair 15150 is constructed from lightweight die-cast aluminum, with a heavy-duty motor that starts easily and operates efficiently. Key features include a top oil fill port for easy maintenance, an angled oil drain valve for clean oil changes, and an easy-view sight glass for quick oil checks.
- Specifications and Dimensions
- Free air displacement: 1.5 CFM
- Factory micron rating: 50 microns
- Stages: 2
- Intake fitting: 1/4″ MFL and 3/8″ Acme, plus 3/8″ FFL x 1/2″ Acme adapter
- Oil capacity: 7.4 oz. (219 ml)
- Motor size: 1/3 hp
- Voltage: 115V 60Hz
- Weight: 22 lbs. (10 kg)
- Dimensions: 9.5″ H x 4.75″ W x 12.5″ L (240 mm x 120 mm x 315 mm)
- Cord length: 6′ (1.8 m)
- UPC: 637335016231
- Warranty: One Year
- Approvals: CSA, as of June 2020
- Key Features and Benefits
- 2-stage rotary vane design for high vacuum capability and faster evacuation
- Heavy-duty motor ensures durability and efficient operation
- Cast aluminum construction provides a lightweight yet robust frame
- Includes comprehensive over-the-counter replacement warranty
This item can only be shipped within the 48 contiguous United States via ground shipping. Unfortunately, we cannot ship it via air or to Alaska, Hawaii, or international locations.
