Description

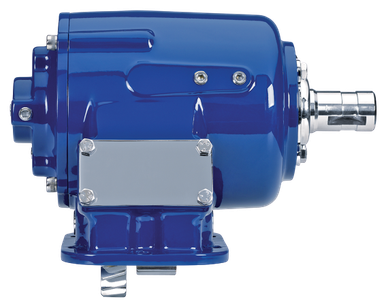

The Muncie SH6F-F8409-A1PX (also referenced as SH6FF8409A1PX) is a Muncie SH Series air-shift power take-off built for high-torque applications. The SH Series fills the performance gap between Muncie’s TG and 82 Series PTOs, offering an integral air-shift design with no exposed air cylinder. The 6-bolt cast iron housing mounts easily to a wide range of transmission applications, with 17 input gear sets covering most popular transmissions and 12 output shaft options to match most common pump types. Five available speed ratios deliver flexibility across hydraulic applications. Overall dimensions are 15.63 in. long x 13.38 in. wide x 11.63 in. tall. Call us to confirm proper fit for your transmission and pump configuration.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for strength and easy mounting
17 input gear sets to fit most popular transmissions
12 output shaft options to match most popular pump types
5 available speed ratios for application versatility
Overall dimensions: 15.63 in. L x 13.38 in. W x 11.63 in. H
