Description

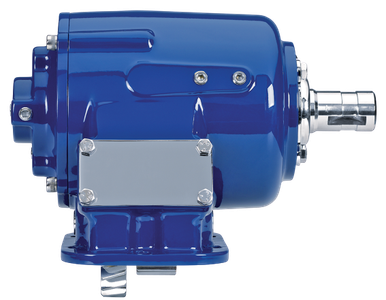

The Muncie SH6S-F6612-E3IX is an air-shift-only power take-off from the SH Series, engineered for high-torque truck applications that fall between Muncie’s TG and 82 Series PTOs. The integral air shift design keeps the air cylinder fully enclosed within the housing, reducing exposure to road debris. A 6-bolt cast iron housing provides a rigid, straightforward mount to compatible transmissions. The SH Series accommodates 17 input gear sets and 12 output shaft options, covering most popular transmission and hydraulic pump combinations. Five speed ratios are available across the series; at speed ratio 05 or 07, the unit is rated for up to 400 ft-lb intermittent torque and 280 ft-lb continuous torque at 1,000 RPM. Also referenced as SH6SF6612E3IX. Call us to confirm proper fit for your application.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for rigid, straightforward mounting
17 input gear sets compatible with most popular transmissions
12 output shaft options to fit most popular pump types
5 available speed ratios across the SH Series
Up to 400 ft-lb intermittent torque (280 ft-lb continuous) at 1,000 RPM at speed ratios 05 and 07
