Description

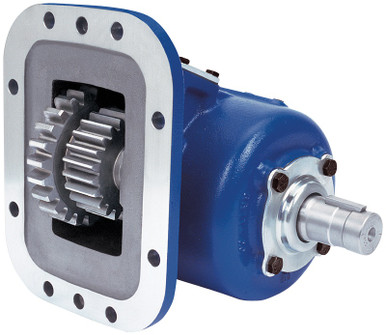

The Muncie SH8 Series Power Take-Off, part number SH8B-U6809-E3PX or SH8BU6809E3PX, is an air-shift-only PTO built for high-torque truck applications. Positioned between Muncie’s TG and 82 Series, the SH8 uses an integral air shift design that eliminates any exposed air cylinder, keeping the installation clean and the profile compact. The 8-bolt cast iron housing mounts easily and handles demanding duty cycles. With 17 input gear sets, this unit fits most popular transmission configurations, and 12 output shaft options accommodate a wide range of pump types. Five speed ratios are available to match your hydraulic system requirements. Call us to confirm proper fit for your application.
Features
Integral air shift design with no exposed air cylinder
8-bolt cast iron housing for secure, high-strength mounting
17 input gear sets to fit most popular transmissions
12 output shaft options to match most pump types
5 available speed ratios for hydraulic system flexibility
High torque capacity suited to demanding PTO applications
Tech Specs
- Series: Muncie SH8 Series Power Take-Off
- Housing: 8-bolt cast iron
- Shift type: Air shift only (integral, no exposed air cylinder)
- Input gear sets: 17
- Output shaft options: 12
- Speed ratios available: 5
- Housing dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
