Description

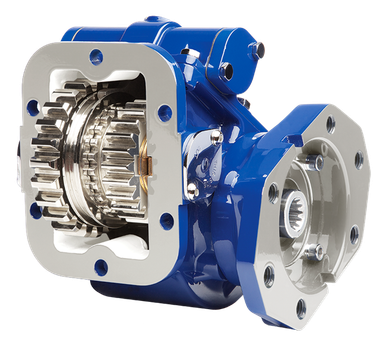

The Muncie TG6N-S7106-A3KX (also referenced as TG6NS7106A3KX) is a TG6 Series double-gear power take-off with a 6-bolt mechanical shift configuration. The die-cast aluminum housing reduces operating noise and improves heat dissipation compared to iron housings. A constant mesh input gear isolates the transmission from engagement errors, and rotatable hydraulic flanges allow pump clearance adjustments without repositioning the unit. The compact envelope measures 12.5 in. long x 10.38 in. wide x 9.13 in. tall, keeping mounting interference to a minimum. The modular design simplifies field repairs, and the extra-large shift cover opening makes backlash checks straightforward. Available from Pro Gear and Transmission. Call us to confirm proper fit for your transmission and application.
Features
TG6 Series double-gear PTO with 6-bolt mechanical shift
Die-cast aluminum housing for reduced noise and improved heat dissipation
Constant mesh input gear isolates transmission from engagement errors
Rotatable hydraulic flanges for flexible pump positioning
Compact 12.5 in. x 10.38 in. x 9.13 in. envelope minimizes mounting interference
Modular design with extra-large shift cover opening for easy backlash inspection
Tech Specs
- Series: Muncie TG6 Series double-gear PTO
- Part number: TG6N-S7106-A3KX or TG6NS7106A3KX
- Housing bolt pattern: 6-bolt
- Shift type: Mechanical shift
- Housing material: Die-cast aluminum
- Length: 12.5 in.
- Width: 10.38 in.
- Height: 9.13 in.
