Description

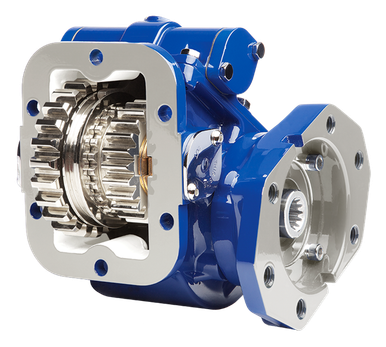

The Muncie TG6N-S7112-E2KH (also referenced as TG6NS7112E2KH) is a TG6 Series double-gear power take-off with a 6-bolt housing and mechanical shift configuration. The die-cast aluminum housing cuts noise and improves heat dissipation compared to iron alternatives. A constant mesh input gear isolates the transmission from engagement errors, and the modular design simplifies both field repair and future reconfiguration. The extra-large shift cover opening gives technicians direct access to check backlash without major disassembly. Rotatable hydraulic flanges allow the output to be clocked for maximum pump clearance in tight mounting situations. The TG Series accommodates a broad range of speed ratios, shift types, and output shaft options, making it adaptable across vocational applications. Call us to confirm proper fit for your transmission and chassis.
Features
TG6 Series double-gear power take-off, part number TG6N-S7112-E2KH or TG6NS7112E2KH
6-bolt housing for simplified installation and secure mounting
Mechanical shift configuration
Die-cast aluminum housing reduces noise and improves heat dissipation
Constant mesh input gear isolates the transmission from engagement errors
Rotatable hydraulic flanges allow output clocking for maximum pump clearance
Tech Specs
- Series: Muncie TG6 Series double-gear power take-off
- Part Number: TG6N-S7112-E2KH or TG6NS7112E2KH
- Housing bolt pattern: 6-bolt
- Shift type: Mechanical shift
- Housing material: Die-cast aluminum
- Input gear type: Constant mesh
- Hydraulic flanges: Rotatable
- Shift cover: Extra-large opening for backlash inspection
