Description

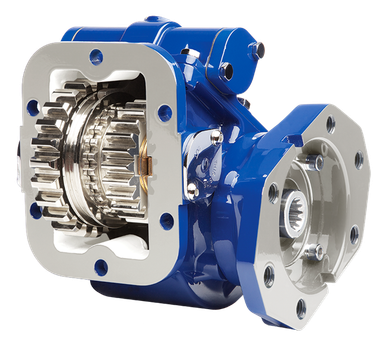

The Muncie TG6N-S7118-A3TH or TG6NS7118A3TH is a TG6 Series double-gear power take-off with a 6-bolt housing and mechanical shift. The die-cast aluminum housing reduces noise and dissipates heat, while the constant mesh input gear isolates the transmission from engagement errors during shifting. At 9.13 in. tall, 10.38 in. wide, and 12.5 in. long, the unit mounts in tight spaces without sacrificing access. The extra-large shift cover opening makes backlash checks straightforward, and the rotatable hydraulic flanges adjust to maximize pump clearance. The TG Series supports 10 speed ratios, 13 shift types, and 10 output shaft options, making this platform one of the most configurable PTOs for vocational truck applications. Call us to confirm the correct fit for your transmission and application.
Features
TG6 Series double-gear power take-off, part number TG6N-S7118-A3TH or TG6NS7118A3TH
6-bolt housing with mechanical shift for straightforward installation and operation
Die-cast aluminum housing for reduced noise and improved heat dissipation
Constant mesh input gear isolates the transmission from engagement errors
Extra-large shift cover opening for easy backlash inspection
Rotatable hydraulic flanges to maximize hydraulic pump clearance
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
| Speed Ratio | Intermittent HP @ 1000 RPM | Intermittent Torque (lb-ft) | Continuous Torque (lb-ft) | Intermittent (kW) @ 1000 RPM | Intermittent Torque (Nm) | Continuous Torque (Nm) |
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
