Description

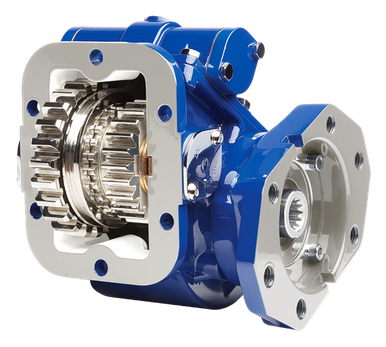

The Muncie TG6N-S7118-C3KH (also referenced as TG6NS7118C3KH) is a TG6 Series power take-off with a 6-bolt housing and mechanical shift. The die-cast aluminum housing reduces operating noise and dissipates heat, while the constant mesh input gear isolates the transmission from engagement errors. A compact footprint minimizes mounting interference, and the extra-large shift cover opening makes backlash inspection straightforward without removing the unit. Rotatable hydraulic flanges help clear pump-clearance obstacles. The modular design simplifies field repair. The TG Series supports 10 speed ratios, 13 shift types, and 10 output shaft options, making it the most widely configured double-gear PTO in the industry. Call Pro Gear and Transmission to confirm proper fit for your transmission and application.
Features
TG6 Series double-gear power take-off, 6-bolt housing for simplified installation
Mechanical shift configuration
Die-cast aluminum housing for reduced noise and superior heat dissipation
Constant mesh input gear isolates transmission from engagement errors
Rotatable hydraulic flanges maximize pump clearance
Extra-large shift cover opening allows easy backlash inspection without unit removal
Tech Specs
- Series: Muncie TG6 Series Power Take-Off
- Housing: Die-cast aluminum, 6-bolt
- Shift Type: Mechanical
- Housing Dimensions (H x W x L): 9.13 in. x 10.38 in. x 12.5 in.
Additional Information
| TG SERIES PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
| Speed Ratio | Intermittent HP @ 1000 RPM | Intermittent Torque (lb-ft) | Continuous Torque (lb-ft) | Intermittent (kW) @ 1000 RPM | Intermittent Torque (Nm) | Continuous Torque (Nm) |
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Note: Torque and horsepower ratings above are series-level ratings for the Muncie TG Series. Confirm the applicable rating for this specific configuration with Pro Gear and Transmission or Muncie Power Products.
