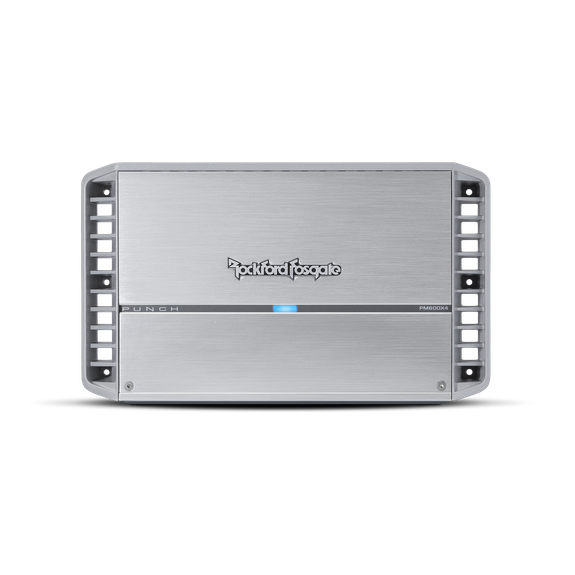

Rockford fosgate Punch Marine 600 Watt 4-Channel Amplifier
Product details
The Punch PM600X4 multi-channel amplifier is versatile to power any audio system configuration. In addition to 4-channel stereo mode, you can bridge both channels to create a high power 2-channel amp, or run stereo speakers on the front with subwoofers on the rear in 3-channel mode. The variable HP/LP crossover and built-in Punch EQ allows for precise tuning of Bass frequencies and the Pass-Thru RCA jacks provide flexibility as your system grows and keeping Y-adapters to a minimum.
FEATURES AT A GLANCE
- Features C.L.E.A.N. Set-up
- RCA pass-thru outputs
- 12dB/octave Butterworth crossover
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- On-board Punch EQ with +18dB boost @ 45Hz
- High level input capable with Auto Turn-On circuit
- Cast aluminum heatsink
- Over current protection
- Stealth top mounted control panel
- Muted turn on
- Marine grade two part epoxy coating on circuit boards
- Marine grade stainless steel hardware
- Short circuit protection
- 2-Year Warranty
Specifications
Cta-2006 Compliant
Number of Channels4Total Power
(Sum of Rated Power)600 WattsRated Power
(RMS Continuous Power)75 Watts x 4 @ 4-Ohm
150 Watts x 4 @ 2-Ohm
300 Watts x 2 @ 4-Ohm BridgedDynamic Power
(PVC/PowerCube®)129 Watts x 4 @ 4-Ohms 0° Res
211 Watts x 4 @ 2-Ohms 0° ResBridgeableYesFrequency Response20Hz to 20kHz +/- 1.0dBInput Sensitivity150 mV – 12 VCircuit Topology ClassClass A/BEfficiency (average)68% @ 4-OhmTotal Harmonic Distortion (THD+Noise)4-Ohm: <1.0%
2-Ohm: <1.0%Signal InputHi/Low level: 2 RCA pairSignal OutputLow level: 1 RCA pairTone ControlsFront Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Front Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
Rear Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Rear Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
Function depends upon LP/AP/HP switch positionCrossover ControlsFront/Rear High-Pass (HP): 50Hz-250Hz @ 12dB/octave Butterworth
Front/Rear Low-Pass (HP): 50Hz-250Hz 12dB/octave Butterworth
All-Pass: YesRemote ControlsOptional Punch Level Control (PLC2) ReadyVisual IndicatorsPower/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THDPower Wire Gauge4 AWGPower Input ConnectorCaptive C-ClampSpeaker Wire Gauge8 AWG to 18 AWGSpeaker Output ConnectorCaptive C-ClampCoolingConvectionHeatsink
Operating Voltage9 – 16 VDCRecommended Fuse
(not included)100 AAverage Current Draw (13.8V Music)45 AMax. Current Draw (13.8V Sinewave)90 ASuggested Alternator75 AIncluded In The Box
Dimensions (H x W x D)2.38 x 7.76 x 13.28 (in)
6.05 x 19.71 x 33.73 (cm)Shipping Weight12.8 Lbs. (5.80 Kg.)
